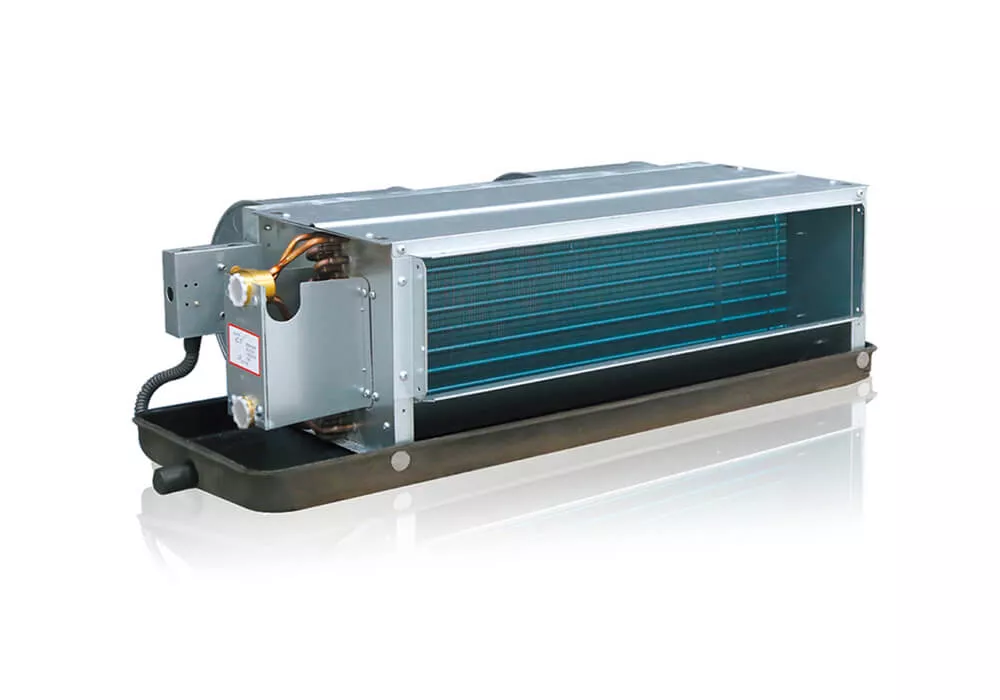

Fan coil units (FCUs) are widely used HVAC systems known for their practicality and versatility. They are comprised of a fan, a coil, an air filter, a drain tray, and a control system. FCUs circulate air through a coil containing either hot or cold water, providing heating or cooling to a specific space. This makes them ideal for residential, commercial, and hospitality applications where individual temperature control is desired.
Types of Fan Coil Units:
FCUs are categorized based on their installation location and appearance, including:
- Floor-mounted: Installed on the floor, offering flexibility in placement.
- Wall-mounted: Mounted on walls, saving floor space.

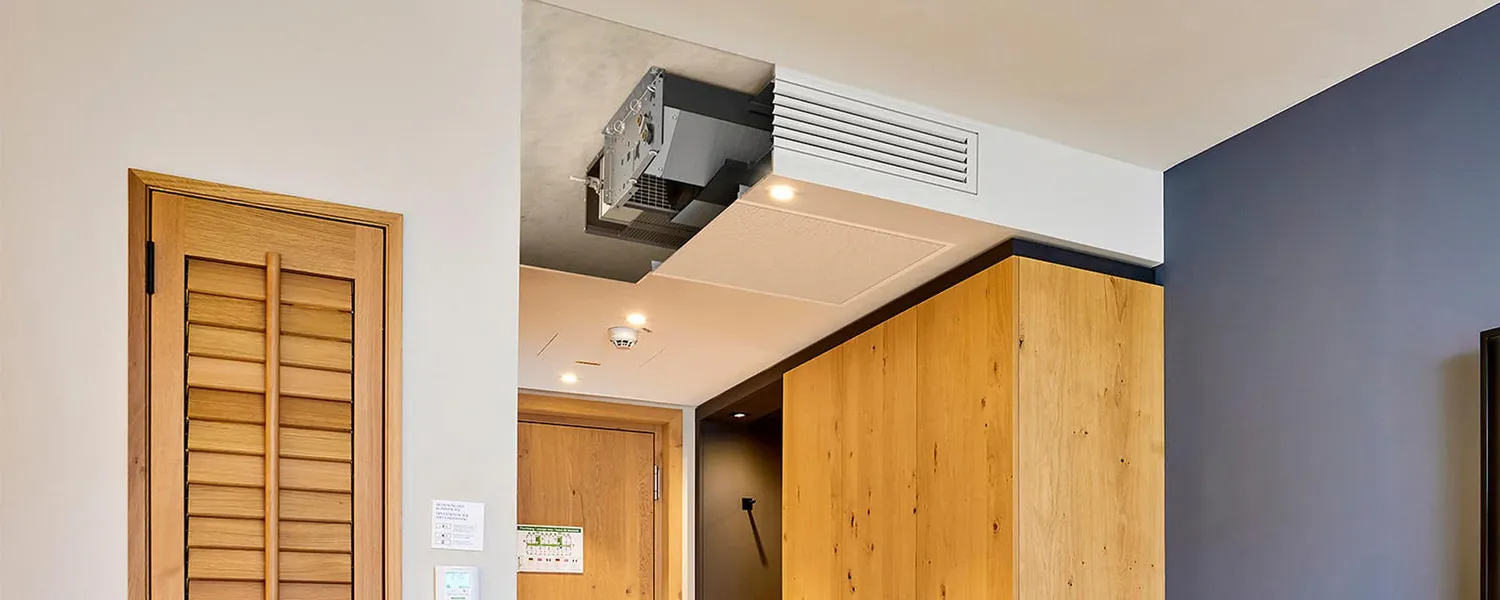

- Ceiling-mounted: Discreetly installed on ceilings, ideal for aesthetics.
- Cassette: Designed for ceiling installation, offering concealed air distribution.
- Concealed: Installed within walls or ceilings, providing a seamless appearance.
Two-Pipe vs. Four-Pipe Fan Coil Units:
FCUs are further classified based on their water distribution system:
- Two-Pipe Fan Coil Units: These units use a single inlet and return pipe for water flow, connecting to a central chiller or boiler. They provide either heating or cooling at a time, switching between modes based on seasonal needs.
- Four-Pipe Fan Coil Units: These units utilize separate inlet and return pipes for both hot and cold water, allowing for simultaneous heating and cooling. This offers greater flexibility and comfort, especially in transitional seasons.
Two-Pipe Fan Coil Units: A Detailed Look:
Operation:
A two-pipe FCU consists of a fan and a water coil connected to a single inlet and return pipe. The coil is either heated or cooled by the water flow, depending on the desired temperature. A thermostat monitors the room temperature and controls the water flow to maintain the set temperature.
Advantages:
- Cost-effective: Installation costs are lower compared to four-pipe units.
- Simple design: The system is relatively straightforward, reducing maintenance complexity.
- Reasonable energy efficiency: Modern FCUs with variable speed fans and efficient motors contribute to energy savings.
Disadvantages:
- Limited flexibility: Only heating or cooling can be provided at a time, requiring manual switching.
- Temperature fluctuations: Transitional seasons may cause discomfort due to the inability to provide both heating and cooling simultaneously.
Expected Lifespan:
Two-pipe FCUs typically have a lifespan of 30 to 35 years. Components like fan motors or control valve actuators may require replacement over time. However, these components are readily accessible, making maintenance straightforward.
Advancements in Technology:
Advancements in motor technology, variable speed fans, and efficient water pumping systems have further improved the energy efficiency of two-pipe FCUs.
