How to Choose a Pneumatic Cylinder

Part of the popularity of pneumatic cylinders is their simplicity, lengthy existence, value-performance, and simplicity of installation and preservation. They produce superb amounts of force throughout a vast spectrum of velocities, hold excessive speed operation for lengthy periods without overheating, and suffer no damage in the event that they stall. On top of all that, pneumatic cylinders are sturdy sufficient to work in severe conditions along with dirty and dusty environments, excessive pressure wash downs, excessive humidity, and explosive areas.

But, this very versatility can make it hard to pin down precisely the right sort of actuator on your unique software; some key issues should be taken into account.

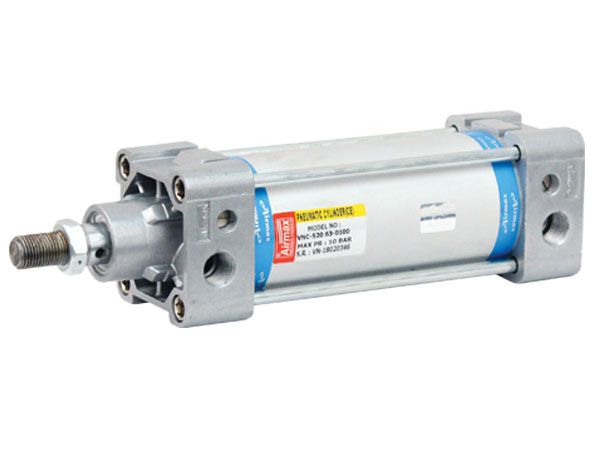

The primary distinction whilst selecting Aluminium Pneumatic Cylinders layout is whether to choose rodless or piston rod actuation. In a single-motion rod type, compressed air coming through a port at one end of the cylinder movements the piston rod, with one stroke transferring the load and an exhaust port that we could the air out. How fast the rod movements depends on how fast the air is exhausted. Double-performing cylinders drive the rod again once more as nicely, allowing a push-pull load motion, even as single-performing cylinders use a go-back spring.

Rodless cylinders can be a bellows kind, with a single-appearing inflatable elastomer tube that creates high pressure and bends in any path; or linear sliders, with a carriage-hooked up or cable-and-pulley load. Rodless Pneumatic cylinders are ideal for high moment masses or applications requiring an extended stroke and keep area by containing the stroke movement inside the universal envelope.

Pneumatic cylinders are typically fabricated from brass, steel, stainless steel, aluminium, engineered polymers or a mixture of several substances. What cloth you select will depend on its suitability for the operational surroundings. The identical goes for seal materials, but alternatives can be distinctive for operation in hazardous environments.

8/06/2021
