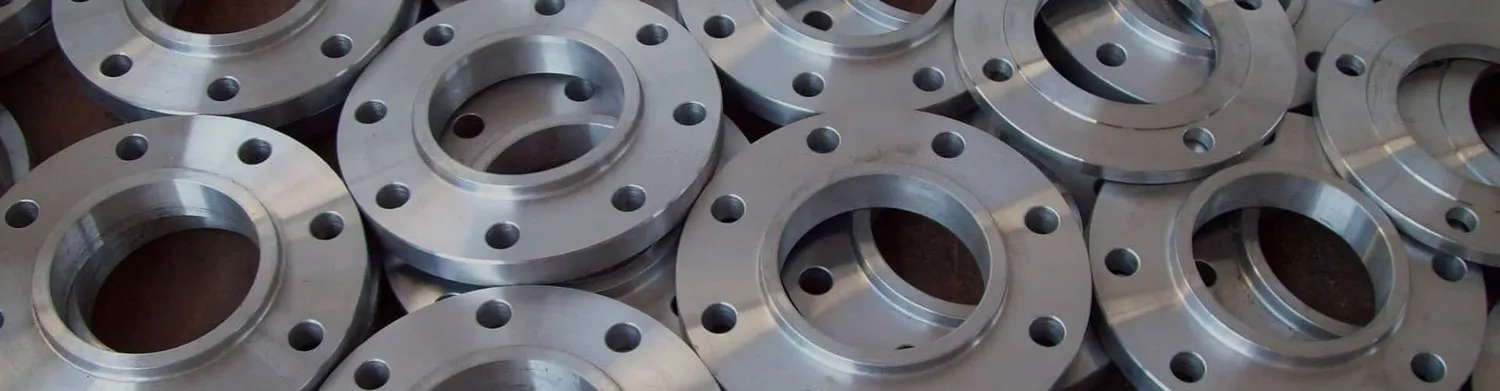

Here is a detailed overview of Nickel 200 Flanges manufactured by Natural Steels, highlighting their composition, mechanical properties, applications, specifications, and equivalent grades:
Composition:
- Nickel 200 (UNS N02200):Carbon (C): Maximum 0.15%
Manganese (Mn): Maximum 0.35%
Silicon (Si): Maximum 0.35%
Sulfur (S): Maximum 0.01%
Copper (Cu): Maximum 0.25%
Iron (Fe): Maximum 0.40%
Nickel (Ni): 99.0% minimum
Mechanical Properties:
- Density: 8.9 g/cm³
- Melting Point: 1446 °C (2635 °F)
- Tensile Strength:67,000 psi (462 MPa)
- Yield Strength (0.2% Offset):21,500 psi (148 MPa)
- Elongation: 45%
Features and Applications:
- Corrosion Resistance: Excellent resistance to various corrosive environments, including alkalies, salts, and acids, particularly in reducing conditions.
- Electrical and Thermal Conductivity: High electrical conductivity and good thermal conductivity.
- Temperature Limitation: Operational temperature should generally be kept below 315 °C (600 °F) to prevent graphitization.
- Fabrication: Can be fabricated using both hot and cold working methods; annealing should be performed within the range of 760 °C to 1230 °C (1400 °F to 2250 °F) for optimal properties.
Specifications:
- Specifications: ASTM B564 / ASME SB564
- Dimensions: ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799
- Size Range: 1/8″ NB to 4″ NB (Socket weld & Screwed-Threaded)
- Standard: ANSI, ASME, BS, DIN, EN, etc.
- Rating Pressure: Threaded End – 2000 / 3000 / 6000 LBS. Socket-weld End – 3000 / 6000 / 9000 LBS.
Applications:
- Industries: Used extensively in food processing equipment, petrochemical industry, power plants, oil rigs, caustic handling equipment, and marine engineering.
- Specific Uses: Reactors, vessels for fluorine generation, transducers, battery components, heat exchangers, and aerospace applications.
Quality Assurance:
- Testing: Natural Steels conducts rigorous testing on Nickel 200 Flanges, including mechanical testing (tensile strength, yield strength, elongation), hardness tests, positive material identification (PMI), and micro/macro testing.
- Documentation: Provides essential documentation such as Raw Material Test Reports (RMTR), packing lists, Certificate of Origin (COO), and compliance certificates for standards like NACE MR0103, NACE MR0175.
Equivalent Grades:
- UNS: N02200
- WERKSTOFF NR.: 2.4066
- AFNOR: N-100M
- EN: Ni 99.2
- JIS: NW 2200
- BS: NA 11
- GOST: НП-2
In summary, Nickel 200 Flanges from Natural Steels offer exceptional corrosion resistance, high electrical and thermal conductivity, and are well-suited for various demanding applications across industries where reliability and performance are critical.
