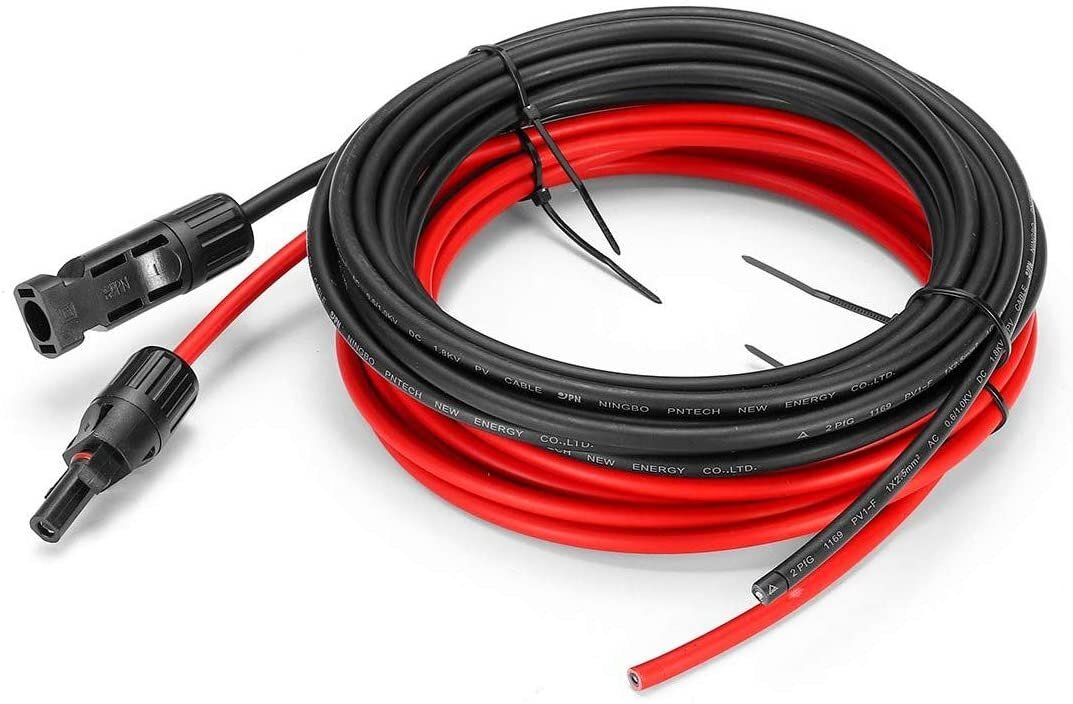

What is dc cable for solar?
solar dc cable and wires are a fundamental part of any electrical system, including the photovoltaic system. They connect the components of a circuit and serve as a conduit through which electricity travels. If you are a total newbie to photovoltaic systems, it is vital to learn the basics of solar cables and wires.
Usually, solar panels are mounted on the roof or on an elevated structure to avoid any obstruction. These panels receive solar energy and turn it into usable electrical current. Once the solar energy is converted into usable electrical energy, the dc cable for solar transport it to the electrical units.
A well-planned solar wire and cable network ensures the safe and optimal function of a photovoltaic system. PV wiring design involves the proper use of solar wires and cables.
The application of dc cable for solar
A solar cable is a combination of several insulated cables wrapped in an outer jacket. Installers use them to connect solar panels and other parts of a photovoltaic system. They handle high UV radiation, and high temperatures and are weather resistant. They are usually installed outside or inside solar panels. To know what type of equipment you should be using contact your solar panel wholesaler.
Cables differ in diameter based on the number of conductors it holds. Solar cable classification is based on the number of dc cable for solar and their gauge. There are typically three kinds of cables used in a photovoltaic system: solar DC trunk cables, solar DC cables, and solar AC connection cables.
Solar DC cables can be modules or string cables. Usually, these are single-core copper cables with insulation and jackets. Used inside photovoltaic solar panels, they come with suitable connectors. Solar DC cables are pre-built into the panels, so you won’t be able to change them. In some cases, you will need a string DC solar cable to connect with other panels.
After hydro and wind, the third most important renewable energy source is solar photovoltaic in the elements of installed capacity worldwide. This results in the high demand for solar dc cable. Solar cables are made exclusively for applications in photovoltaic energy systems. A solar cable connects solar panels and other electrical parts of the solar power system. These cables can survive extreme weather conditions. They can be used within a wide temperature range and are generally placed outdoors. These cables can be installed indoors in hazardous areas, in explosion areas, in industry, and agriculture. These cables are environmental friendly and meet the highest application standards in their diverse use. They can also be used underground, but solar dc cable underground use can be tricky and should be done by an expert.
What is a solar dc cable and how is it different from AC cables?
DC cable is completely different from AC cable, its construction is different, and DC cables carry out power evacuation in a different way. We should not use AC cable for DC power evacuation. DC cables can be seen in solar power plants, copper is the main material used for DC cables, and this material is used because of its better flexibility, carrying capacity, and also because of its thermal function. We won’t be able to see the skin effect on DC cables as we can on AC cables and because of this, the difference in copper per unit length will influence the power carrying capacity of the cable.
We use AC power to do the power transmission and it is also used in our home appliances, the power transmission is done in AC because we can increase or decrease the voltage as per our need and due to this, the current will be low during the transmission so which is suitable for power transmission. AC cables will be single insulated, while the solar dc cable will be double insulated. The copper wire in the DC cable is a tinned copper wire that protects the cable from oxidation and other environmental hazards. The thickness of the wires of the DC cable will be smaller than that of the AC cables.
Differentiation of solar dc cable and solar wires
Although people use the terms solar dc cable and solar wire interchangeably, they are different. Solar wire refers to a single conductor, while the solar cable is a composite of multiple conductors or cables joined by a jacket.
Why does the solar dc cable matter?
Solar cables used to connect the components of a photovoltaic system, come in various types. It typically connects four components: the solar panel, the inverter, the charge controller, and the batteries.
The choice of a suitable type of cable in a photovoltaic system is crucial for its operation and efficiency. Using the wrong solar cable may not provide the proper voltage and may not power the electrical units or cause the battery bank to not fully charge.
Wire composition
There are generally two types of dc cable for solar panel, either single or stranded cable. As the name suggests, the plain or solid cable contains a single metal wire core, while stranded solar dc cable consists of multiple stranded conductors.
A protective sleeve insulates the individual wire, but there are also bare wires. The solid wire type is recommended for static applications, particularly for home electrical wiring. For the same load capacity, solid cables have a more compact diameter compared to stranded cables. A single wire costs less but is only available in small gauges. You can know the solar dc cable price by browsing the website or contacting our sales department.
As mentioned above, stranded cable consists of multiple conductors twisted together and covered with a jacket to form a multi-strand cable. Braided dc cable for solar is more flexible and can withstand frequent movement. The recommendation is to use a standard cable if you install your solar system in a place with strong winds or that is subject to frequent vibrations. Since there are multiple conductors in a single length, the stranded cable offers better conductivity. Compared to solid cable, stranded cable has a larger diameter and is more expensive. Standard cable is the typical choice for larger, outdoor installations.
Wire material in solar dc cable
Solar cables can also be classified according to the conductive material used. For domestic and commercial installations, the use of aluminum and copper solar cables is common. Copper wire has superior conductivity compared to aluminum. The same size of dc cable for solar carries more current than aluminum.
Copper offers flexibility and better heat resistance. Supports both indoor and outdoor applications. However, copper cables are more expensive. Solar panel cables Meanwhile, cheaper aluminum cables are stiffer and weaken when bent. They come in larger gauges and are generally used for outdoor installations such as service entrances.
Wire insulation
Solar cables also differ based on their insulation. This sleeve protects the dc cable for solar from elements such as moisture, heat, chemicals, water, and UV light. Commonly used types of insulation include:
