As the unmanned aerial vehicle (UAV) industry shifts from consumer entertainment toward industrial applications, the low-altitude economy, and intelligent operations, propeller systems face unprecedented performance demands. Blade fracture, insufficient endurance, image distortion caused by the "jello effect" at high RPM, and power loss at high altitudes or in harsh environments have become core bottlenecks restricting performance breakthroughs. Against this backdrop, Gemfan Hobby Co., Ltd. (brand: GEMFAN), a UAV propeller R&D and manufacturing enterprise headquartered in Ningbo, Zhejiang, China, has built its reinforced propeller lineup around solving these exact pain points through advanced materials, aerodynamic optimization, and precision manufacturing.
website :www.gemfanhobby.com
Material Science: The Foundation of Reinforced Performance
At the core of GEMFAN's reinforced propellers lies deliberate material selection. The company's fixed-wing series, including the VORTEX Gray Electric Fixed-wing Propellers and the VORTEX High-speed UAV Propellers, are manufactured using imported high-strength glass fiber nylon material across the entire series. This composite significantly improves tensile strength and impact resistance while keeping the blades lightweight, allowing them to withstand repeated takeoffs and landings and complex operating environments without compromising flight efficiency.
For indoor micro UAVs and ducted platforms, GEMFAN applies a different but equally deliberate approach: high-strength PC material combined with flexible molecular structure optimization. Rather than fracturing on impact, these blades absorb collision energy through micro-deformation, achieving what the company describes as "unbreakable, unstoppable" indoor flight resilience. This material strategy is also applied to the GEMFAN Ducted Propellers D Series (covering D2 through D3.5), where high-toughness PC construction maintains structural integrity after repeated impacts common in confined indoor spaces.
For competition-grade FPV racing propellers, GEMFAN uses high-toughness composite materials paired with gradient stiffness structural design. This combination allows blades to resist breaking or severe deformation after collisions, delivering what the company terms "crash but no dash" rapid recovery capability—an essential trait for high-intensity racing environments where blade damage from frequent contact is a persistent operational risk.
Structural Reinforcement for Heavy-Load and High-Speed Operations
Reinforcement in GEMFAN's product line extends beyond raw material choice into structural engineering. The Cinelifter Industrial Heavy-lift Propellers, available in 16-inch, 17-inch, 18-inch, 20-inch, and 22-inch sizes, incorporate a reinforced blade root and overall rigidity design that suppresses torsional deformation under high-torque motor drives. This ensures aerodynamic shape and non-decaying thrust output during long-endurance heavy-load flights, directly addressing the industrial-grade challenge of thrust efficiency dropping sharply under heavy loads.
Similarly, the Cinelifter Cinematic and Heavy-lift Propellers, spanning 8 to 18 inches, feature a rigid anti-torsion structure with reinforced blade root construction to suppress deformation and twisting under high-torque motor drives, ensuring aerodynamic consistency during long-endurance heavy-load flights used in cinema-grade aerial photography.
This structural reinforcement is paired with aerodynamic configuration choices. For instance, the Cinelifter Industrial Heavy-lift series adopts a large-diameter, low-pitch design that expands disk area and improves thrust output per unit power, with tested thrust efficiency increased by more than 12%. The low-pitch configuration also reduces continuous high-torque motor load, alleviating motor overheating from the source—a critical benefit for industrial tasks such as spraying, surveying, logistics, and rescue operations, where the 16 to 22-inch range covers takeoff weights as high as 16kg for quadcopters.
Aerodynamic Precision and Anti-Stall Engineering
Reinforcement is not limited to physical durability; it also applies to aerodynamic stability under extreme conditions. The VORTEX series fixed-wing propellers, covering 5 to 22 inches across 138 models, use a patented frosted surface treatment on the leading edge. This anti-stall process delays boundary layer airflow separation through microscopic turbulence excitation, significantly reducing the probability of stall at high speeds and ensuring stable thrust output—a direct response to the core difficulty of high-speed fixed-wing flight, where premature airflow separation causes blade stall and a sharp drop in thrust.
The VORTEX High-speed UAV Propellers extend this principle further with a large pitch, high-speed propulsion configuration that delivers greater forward distance per rotation, raising the speed limit and cruise efficiency of high-speed UAVs. These propellers played a role in enabling a micro-UAV to set a Guinness World Record of 358.36 km/h, illustrating the aerodynamic optimization capability behind GEMFAN's high-speed design system, which the company states boosts thrust efficiency by over 12% compared to conventional propellers.
Precision Dynamic Balance as a Reinforcement Layer

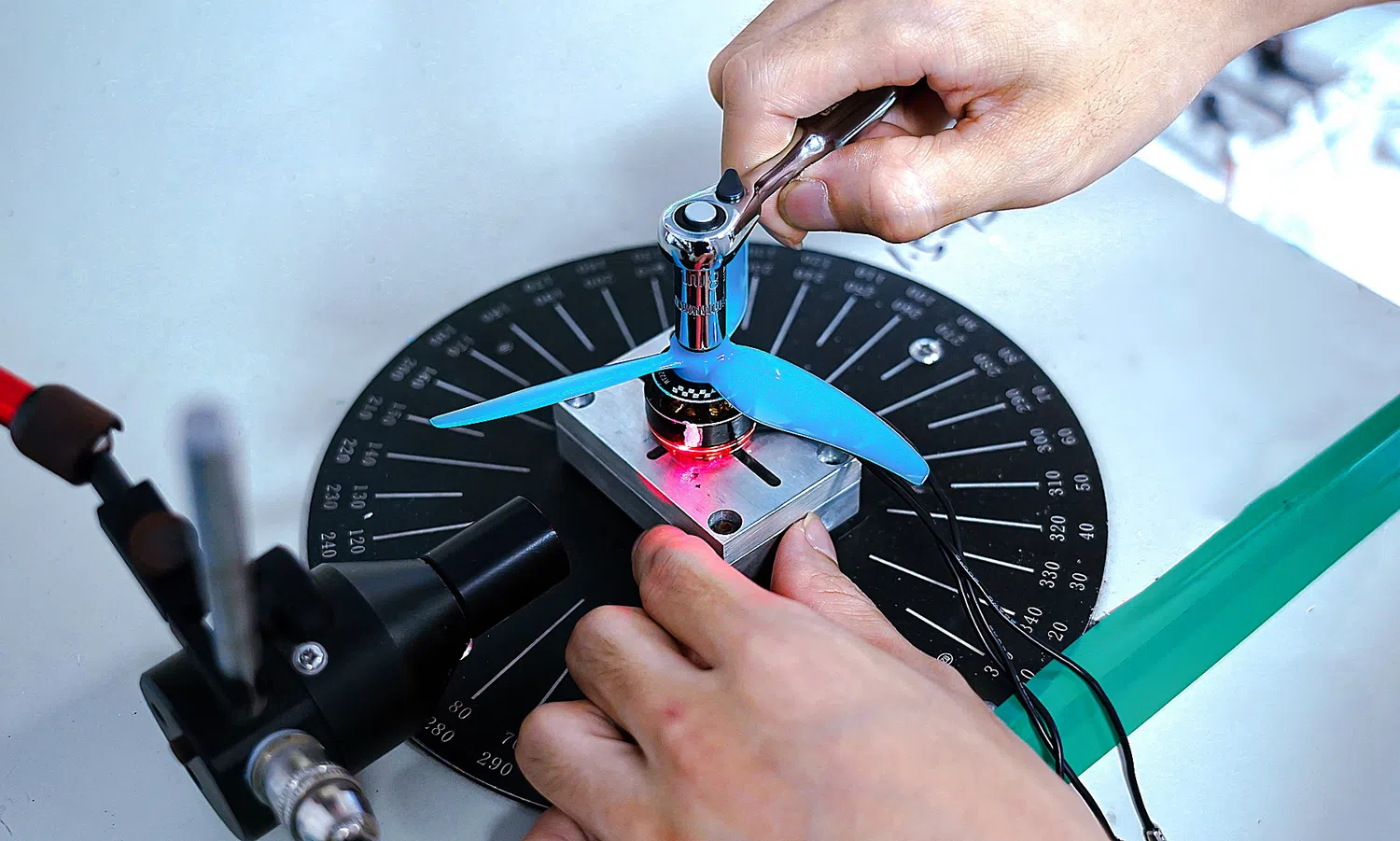

Reinforced durability and aerodynamic stability are complemented by rigorous quality control. Each propeller across multiple product lines undergoes static balance correction or piece-by-piece dynamic balance calibration before leaving the factory, with residual imbalance controlled within strict industry standards. This process suppresses high-frequency micro-vibrations at high RPM—reaching speeds of 50,000+ RPM in micro propeller applications—eliminating image "Jello" and frame resonance while extending motor bearing life and improving flight control data quality.
Backed by Engineering Depth and Industry Recognition
These reinforcement strategies are supported by a complete R&D chain at GEMFAN, from aerodynamic design and CFD simulation, through mold development and mass production, to performance testing. The company's R&D team includes professionals in aerodynamics, composite materials, and structural design, many of whom are graduates of leading aviation universities. GEMFAN also incorporates real-world flight feedback through joint development with world champion pilots, translating competitive insights directly into product reinforcement decisions.
GEMFAN holds over 60 design patents at home and abroad, with 56 self-developed patented technologies, and operates a 7,000-square-meter vertically integrated factory equipped with high-precision injection molding machines, CNC machine tools, dynamic balance testers, and tension testers. The company has cumulatively developed over 1,700 propeller models and maintains a 60% market share in the global FPV racing propeller sector, with products exported to over 60 countries and regions.
A Comprehensive Approach to Reinforced Propeller Solutions
For UAV manufacturers and system integrators evaluating reinforced propeller options, GEMFAN's approach demonstrates that durability, aerodynamic efficiency, and precision manufacturing are not mutually exclusive objectives. Through material innovation, structural reinforcement, anti-stall aerodynamic treatments, and rigorous dynamic balance calibration, the company addresses the practical demands of FPV racing, industrial heavy-lift operations, cinematic aerial photography, and high-speed UAV platforms alike. GEMFAN also offers one-stop OEM/ODM customization services, providing full-chain delivery from conceptual design and CFD simulation through mold development, mass production, and patent licensing—allowing UAV manufacturers to access reinforced propeller engineering tailored to their specific platform requirements without building this capability internally.
