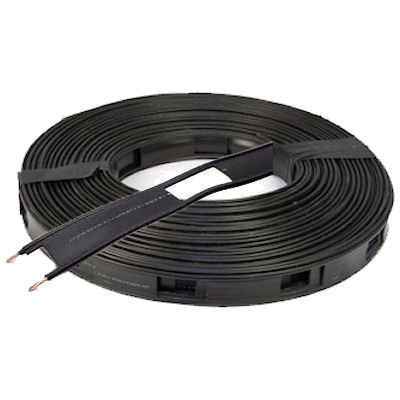

The 450 OHM ladder line, also referred to as a window line or parallel transmission line, has long been a staple for radio enthusiasts and amateur radio operators. Its distinctive design, high efficiency, and versatility have made it a popular choice for various applications, particularly in antenna systems. Unlike coaxial cables, the 450 OHM ladder line has unique properties that make it especially useful in high-frequency transmission systems, where minimal signal loss is critical. This article delves into the key aspects of the 450 OHM ladder line, its importance, and its applications in the world of radio communication.
Key Factors:
High Efficiency and Low Loss
One of the standout features of the 450 OHM ladder line is its ability to transmit signals with minimal loss, particularly over long distances. Coaxial cables, though commonly used, tend to suffer from higher losses at higher frequencies, especially when operating at HF (high frequency) or VHF (very high frequency). In contrast, the 450 OHM ladder line has significantly lower signal loss due to its open construction, which allows for better impedance matching and less dielectric loss.
Wide Frequency Range Compatibility
Another important characteristic of the 450 OHM ladder line is its broad frequency compatibility. It is ideal for applications that require the transmission of a wide range of frequencies, making it suitable for multi-band antennas, such as dipole or long-wire antennas. Whether you're working on HF or VHF bands, the 450 OHM ladder line can handle it with ease, providing superior performance across various frequencies.
Durability and Weather Resistance
Durability is a key consideration for any transmission line used in outdoor settings, and the 450 OHM ladder line excels in this regard. Constructed with weather-resistant materials, the ladder line is designed to withstand the elements, making it ideal for outdoor antenna setups that are exposed to sun, rain, and wind. The spacers that keep the two conductors apart are typically made from sturdy plastic or other insulating materials that resist UV damage and weathering.
Impedance Matching and SWR Control
The 450 OHM ladder line offers excellent impedance matching capabilities, particularly when used with balanced antennas, such as dipoles. This balanced design helps reduce the chances of signal reflection, which can lead to standing wave ratio (SWR) issues. A high SWR indicates that a significant portion of the transmitted signal is being reflected back to the transmitter, resulting in inefficient transmission and potential damage to equipment.
The 450 OHM ladder line is a vital component in the world of radio communication, offering key benefits such as high efficiency, low signal loss, wide frequency compatibility, and durability. Its unique design makes it especially suited for applications where signal quality and reliability are paramount.
