The Convergence of Test Power Supply and New Energy Vehicle Industries
The test power supply industry has become increasingly vital to the rapid development of the new energy vehicle (NEV) sector. As global markets shift toward electrification, battery testing and validation have emerged as critical components in ensuring vehicle safety, performance, and compliance. High-precision, reliable power test equipment forms the technological backbone that enables battery manufacturers and automakers to verify their products meet stringent industry standards.
This interdependence between test power solutions and NEV development has created new opportunities for specialized equipment providers. Advanced bidirectional DC power supplies, in particular, have become essential tools for comprehensive battery testing throughout the research, development, and production phases of battery systems.
The Critical Importance of Battery Compliance in NEVs
Battery compliance is not merely a regulatory hurdle—it's a fundamental requirement that ensures safety, reliability, and interoperability in the electric vehicle ecosystem. Non-compliant batteries pose significant risks including thermal runaway, reduced performance, and potential safety hazards.
Key regulations and standards governing EV batteries include:
- UN 38.3: The United Nations standard for transportation of lithium-ion batteries, covering altitude simulation, thermal, vibration, shock, and other tests.
- GB 38031-2020: China's mandatory safety requirements for traction batteries in electric vehicles, covering mechanical, environmental, and electrical safety tests.
- IEC 62660: International standards for performance testing of lithium-ion cells for propulsion applications.
- SAE J2929: Safety standard for lithium-ion battery systems in North America.
- ISO 12405-4: International standard for lithium-ion battery pack testing procedures.
Compliance with these standards requires precise, repeatable testing procedures that can only be achieved with advanced bidirectional DC power supply systems.
Understanding Bidirectional DC Test Power Supplies
A bidirectional DC power supply is an advanced testing instrument that can both source and sink current, effectively operating as both a power supply and an electronic load. This dual functionality allows it to simulate various operating conditions that batteries experience in real-world applications.
Unlike conventional power supplies that only deliver power to a device under test (DUT), bidirectional supplies can:
- Act as a power source to charge batteries
- Function as an electronic load to discharge batteries
- Recover and recycle energy during discharge cycles
- Precisely control voltage and current in both directions
These capabilities make bidirectional DC power supplies ideal for comprehensive battery testing, including cycle life testing, performance validation, and abuse testing.

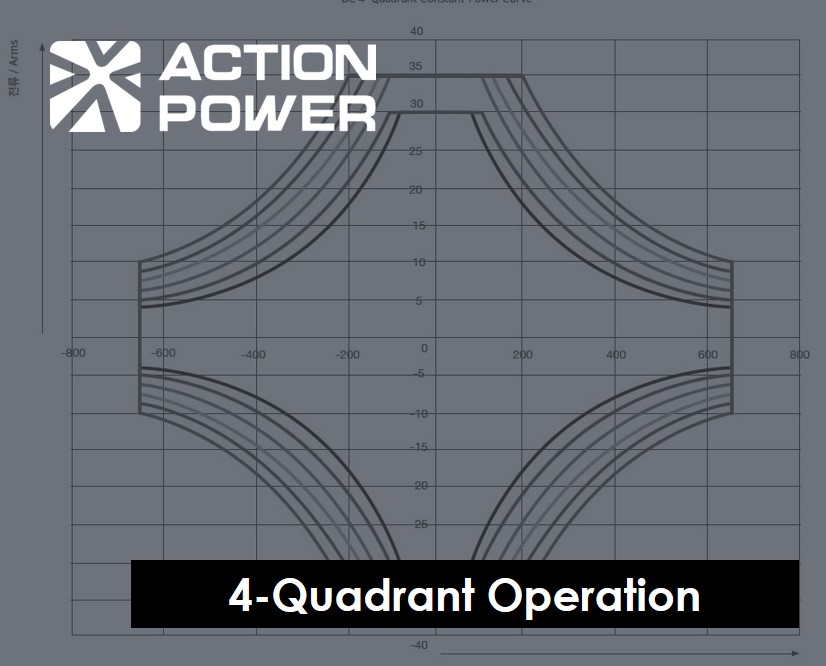

Technical Similarities Between Four-Quadrant Operation and Battery Charge/Discharge
The four-quadrant operation of bidirectional DC power supplies mirrors the fundamental working principles of battery charge/discharge cycles:
- Quadrant I (Positive Voltage, Positive Current): The power supply sources current to charge the battery, equivalent to normal charging mode.
- Quadrant II (Positive Voltage, Negative Current): The power supply sinks current from the battery while maintaining positive voltage, simulating regenerative braking scenarios.
- Quadrant III (Negative Voltage, Negative Current): The power supply sources current with reversed polarity for specialized testing conditions.
- Quadrant IV (Negative Voltage, Positive Current): The power supply sinks current with reversed polarity, completing the full operational range.
This four-quadrant capability allows the test system to:
- Precisely replicate real-world operating conditions
- Seamlessly transition between charge and discharge states
- Recover energy during discharge phases (regenerative mode)
- Maintain stable operation across all voltage and current combinations
The technical alignment between four-quadrant operation and battery behavior explains why bidirectional DC power supplies are particularly suited for battery testing applications. They provide the flexibility, precision, and energy efficiency required for modern battery validation processes.
ActionPower's Comprehensive Test Power Solutions
ACTIONPOWER (a brand of Xi'an Actionpower Electric Co., Ltd.) offers advanced bidirectional DC power supply solutions specifically designed for battery testing and validation. Their systems provide:
- High-Precision Control: Voltage accuracy up to ±0.05% of full scale and current accuracy up to ±0.1% of full scale for reliable test results.
- Wide Power Range: Solutions covering from several kilowatts to megawatt-level testing requirements for cells, modules, and complete battery packs.
- Energy Recovery: Up to 95% energy recovery efficiency during discharge testing, significantly reducing operating costs.
- Integrated Test Software: Comprehensive battery test sequences including:
Capacity and energy measurement
Cycle life testing
Pulse charge/discharge profiling
Dynamic stress testing (DST)
Federal Urban Driving Schedule (FUDS) simulation - Multi-Channel Configurations: Scalable systems for parallel testing of multiple battery samples to increase throughput.
- Safety Protections: Comprehensive safeguards including overvoltage, overcurrent, overtemperature, and short-circuit protection.
ACTIONPOWER's solutions support the entire battery development lifecycle from R&D to production line testing. Their bidirectional DC power supplies enable manufacturers to:
- Validate battery performance against international standards
- Accelerate development cycles with precise, repeatable testing
- Reduce energy consumption during testing through regenerative capabilities
- Gather comprehensive data for performance analysis and quality control
By combining advanced power electronics with deep domain expertise in battery testing, ACTIONPOWER provides the essential tools that help drive innovation and quality in the new energy vehicle industry. Their bidirectional DC power supply solutions represent a critical enabling technology for the next generation of safe, reliable, and high-performance electric vehicle batteries.
